GM4 – MOTOR GEAR 3-6V 59RPM GEAR RATIO 325:1 SERVO SHAPED

  • $18.95 $15.16

Share:

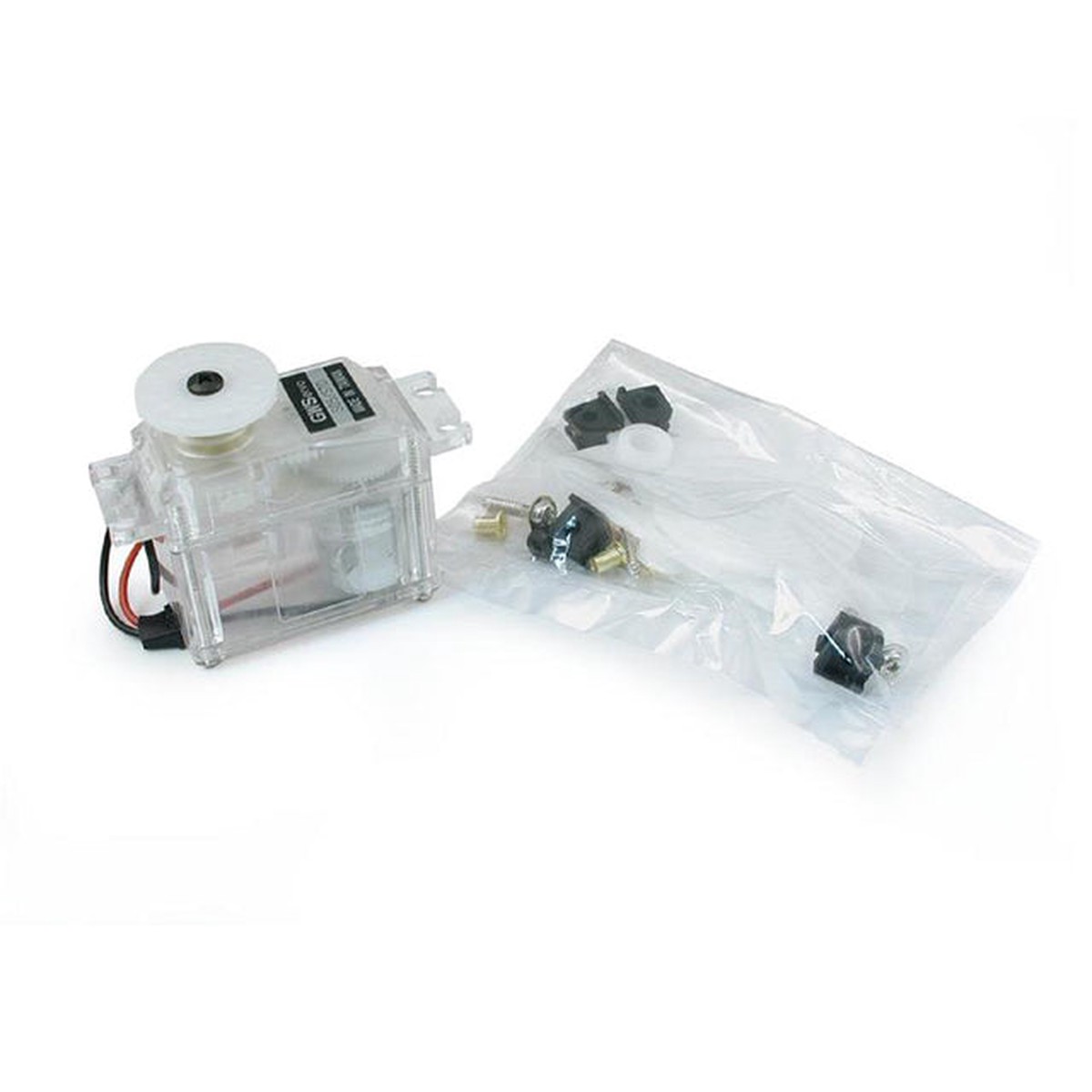

This is a modified GWS05 servo from GrandWing Servo. It’s a servo body with servo gears but with continuous rotation and no electronics. This a gear motor in a clear servocase. No circuit board means you get a robust servoshaped motor.

Each motor comes with a standard servo accessory pack. Description:

  • Servo Body style Motor (requires an HBridge Driver)
  • Gear Ratio: 325.10:1
  • Plastic Gear Train
  • At 3 Volts
    Unloaded RPM (3V): 67
  • Unloaded Current (3V): 64 mA
  • Stall Current (3V): 322 mA
  • Stall Torque (3V): 35.12 in*oz
    At 6 Volts
  • Unloaded RPM (6V): 77
  • Unloaded Current (6V): 93 mA
  • Stall Current (6V): 529 mA
  • Stall Torque (6V): 50.94 in*oz
  • Measurements: 1.83 x 2.18 x 0.79 (46.6mm x 55.4mm x 20.0mm)
  • Weight: 1.35oz (38.4g)
